There are two ways to display a PDF document inside a form. The first method uses the PDF Embedder Widget to display the PDF. The second is embedding the PDF directly via an iframe using the Paragraph element.
Update
We are excited to announce that we have just released the new version of Jotform PDF Editor.
How to Use the PDF Embedder Widget
Using the PDF Embedder widget is highly recommended as it is straightforward and doesn’t require any technical knowledge to set up. Here’s how:

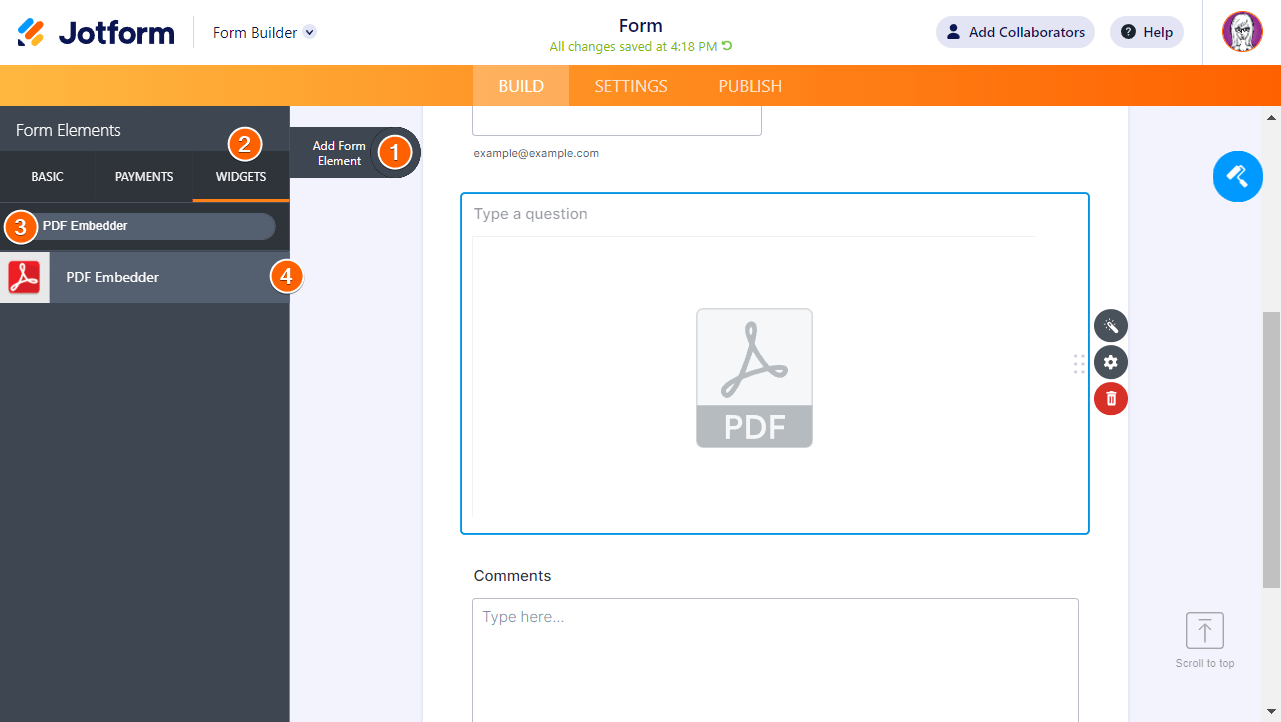

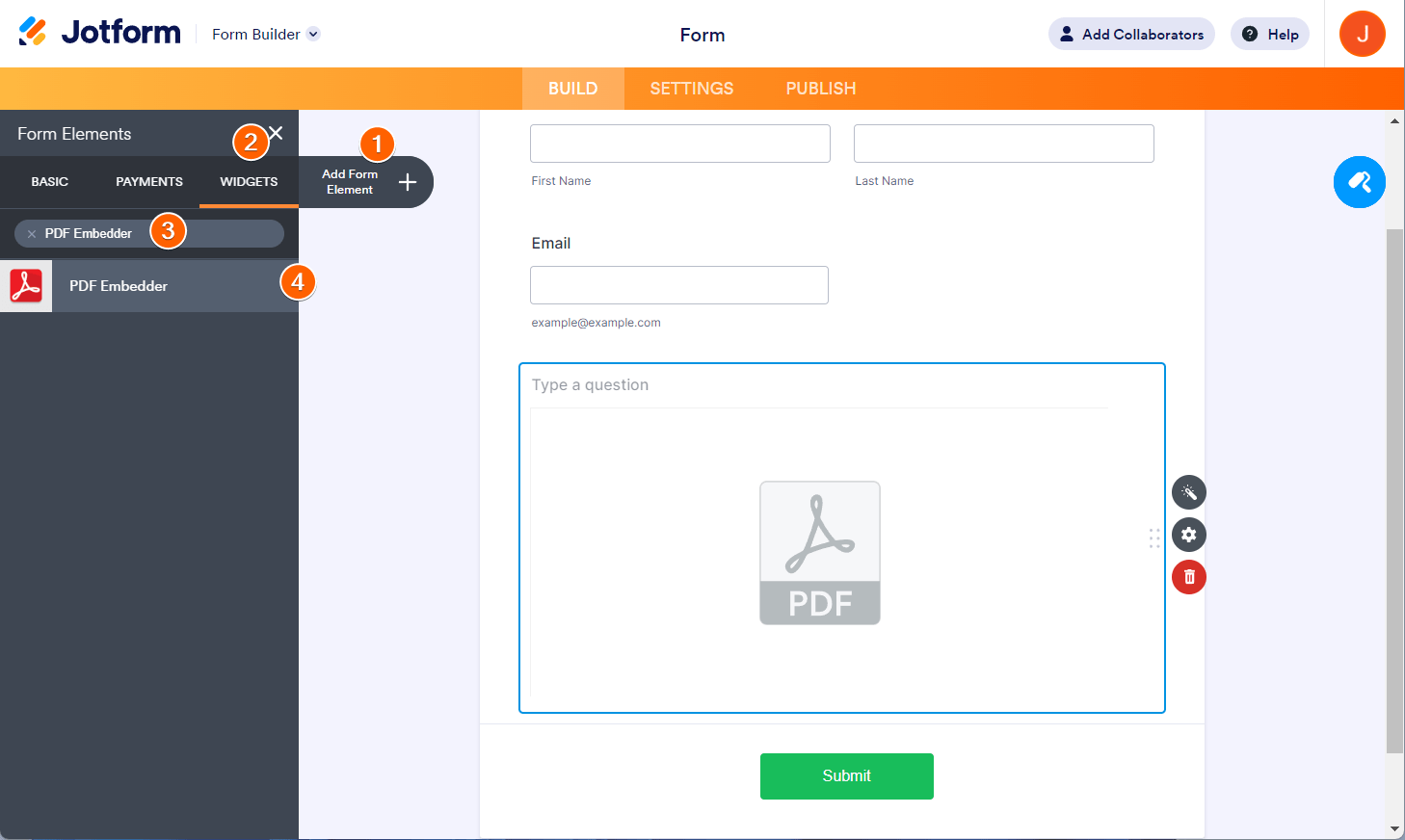

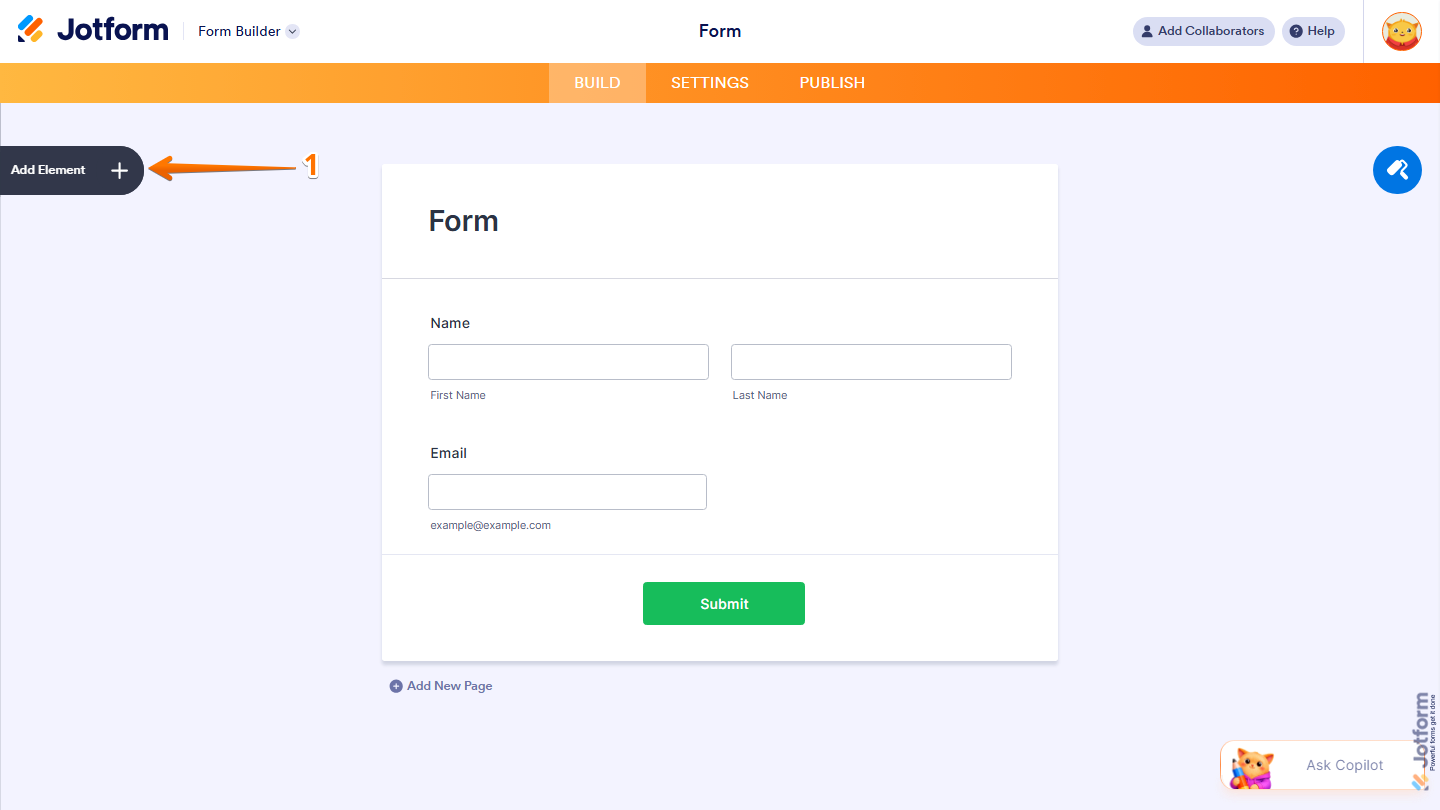

- Click the Add Form Element button in the Form Builder.
- Go to the Widgets tab.

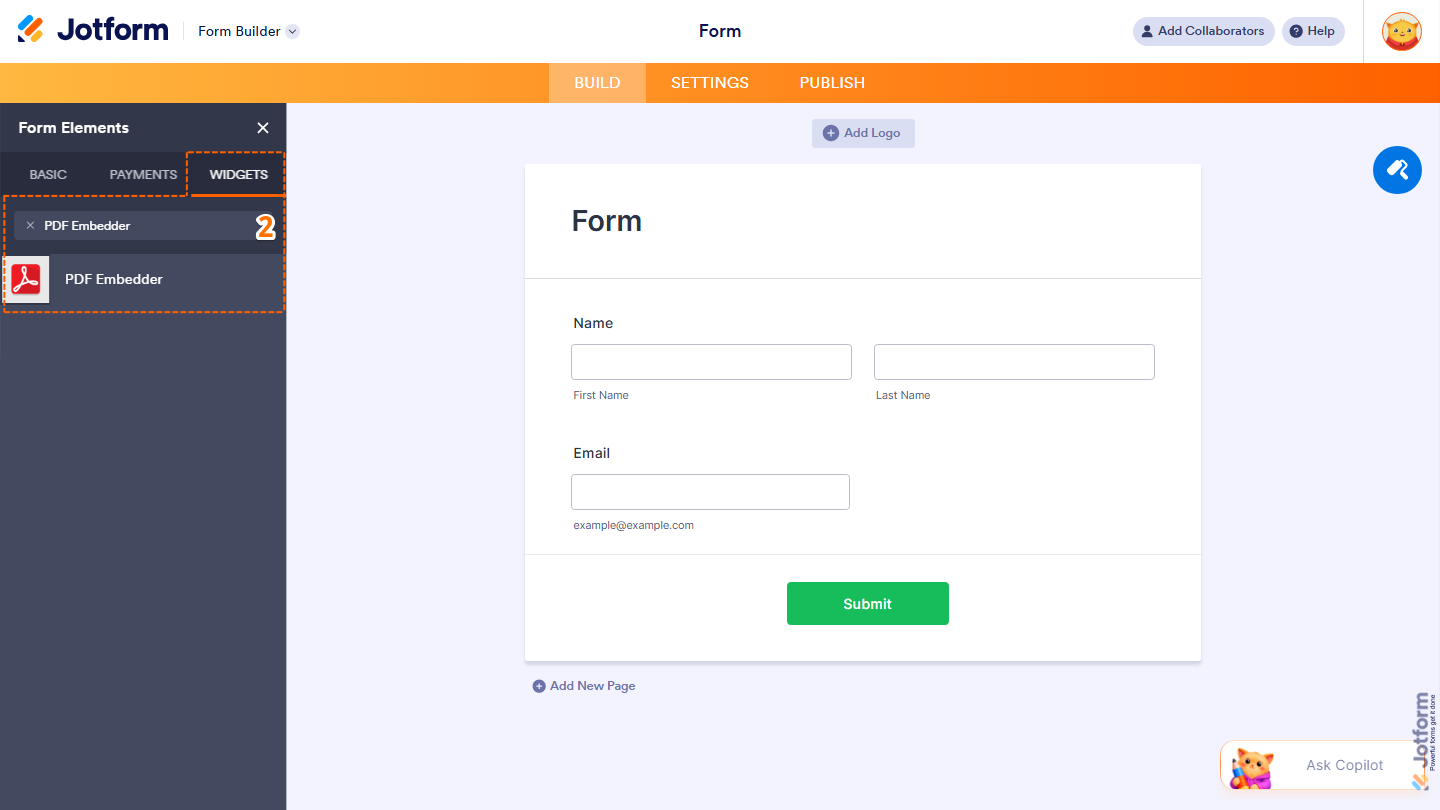

- Search for “PDF Embedder” from the list.
- Click or Drag and Drop the PDF Embedder to add.

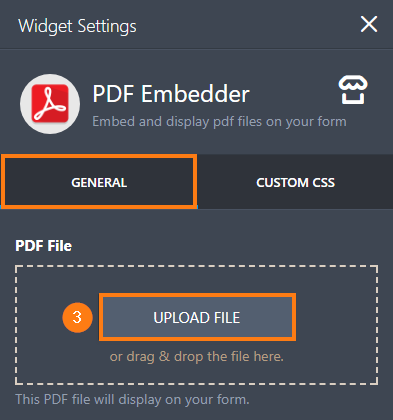

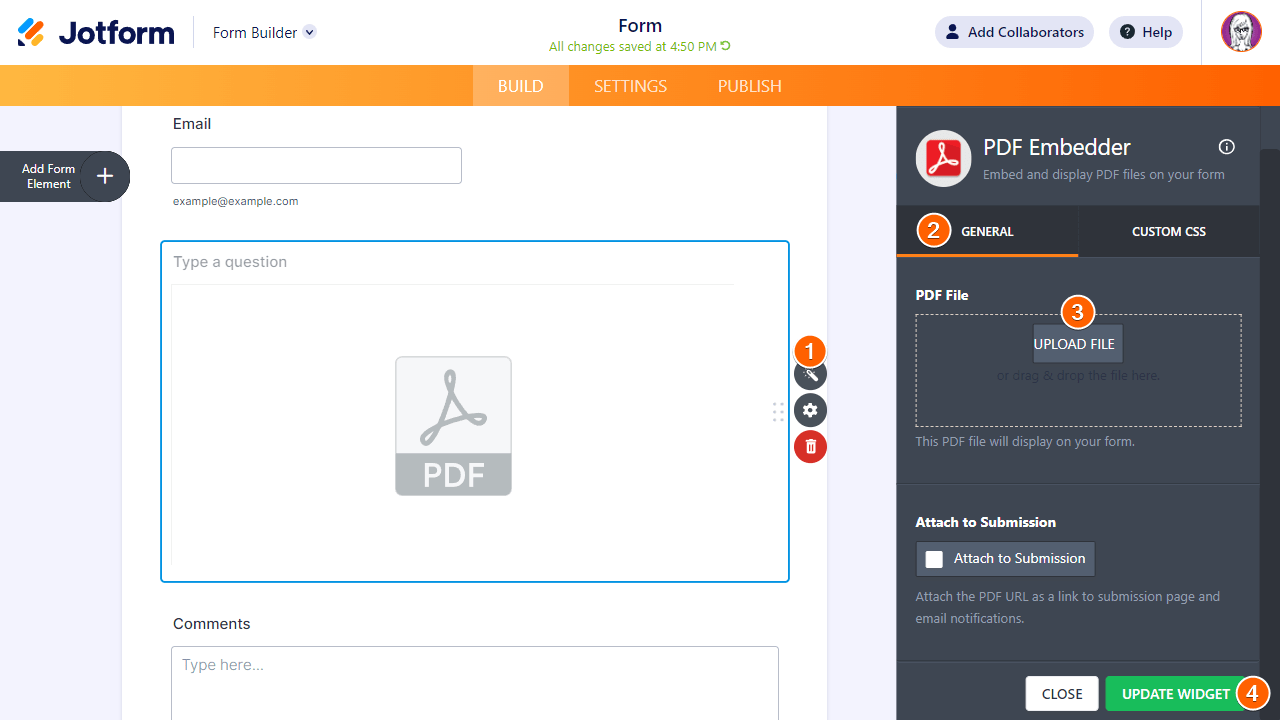

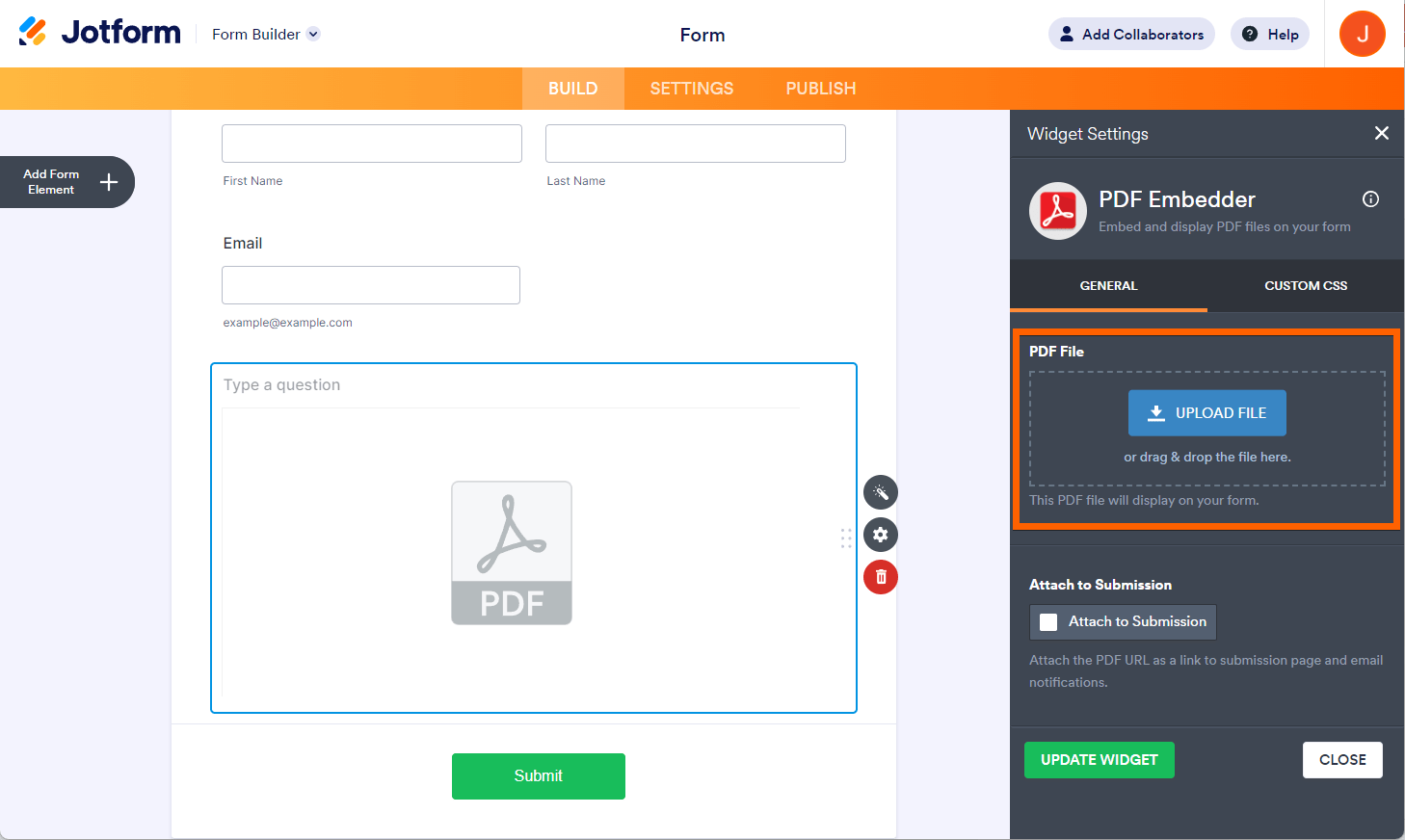

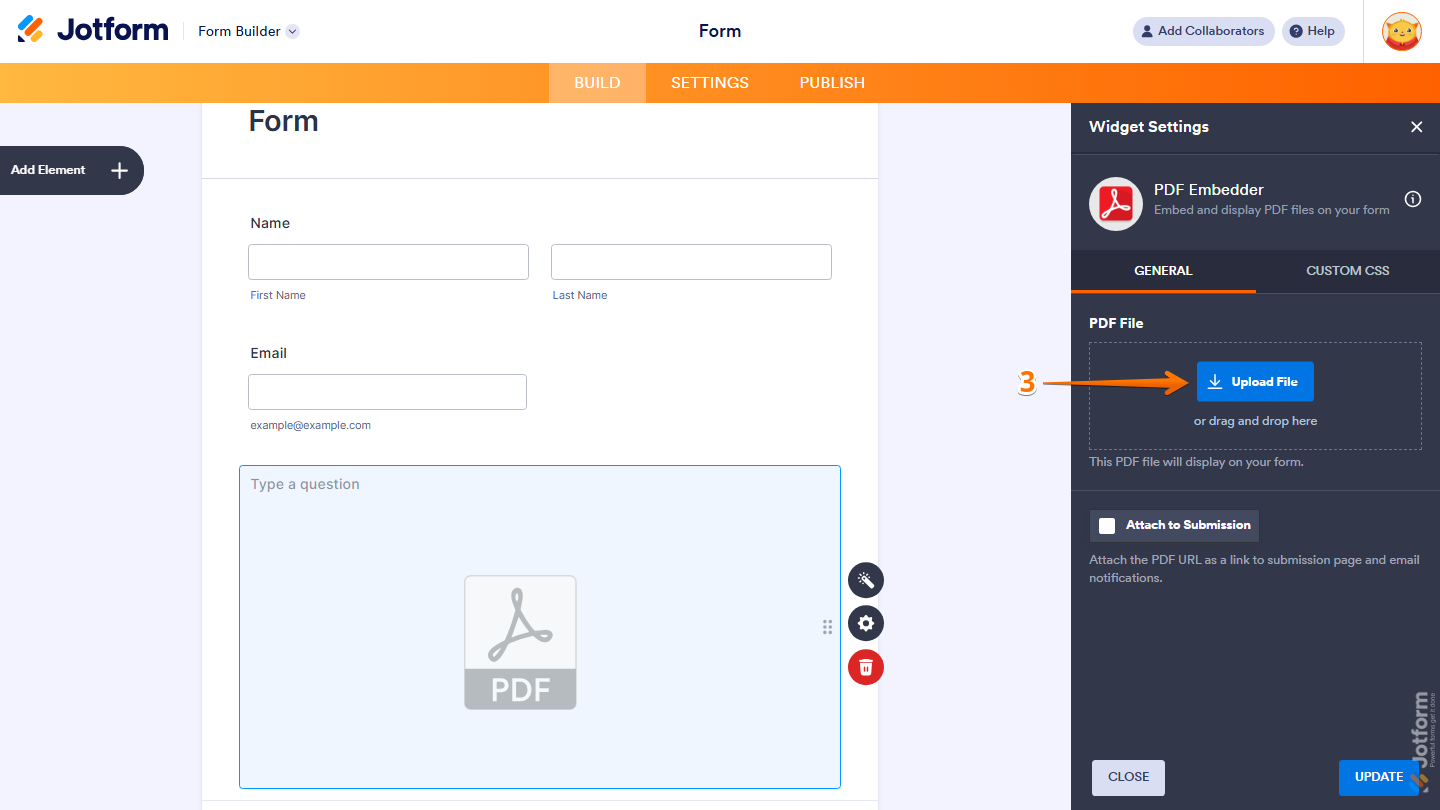

- Under the General tab of the PDF Embedder widget settings, click the Upload File button.

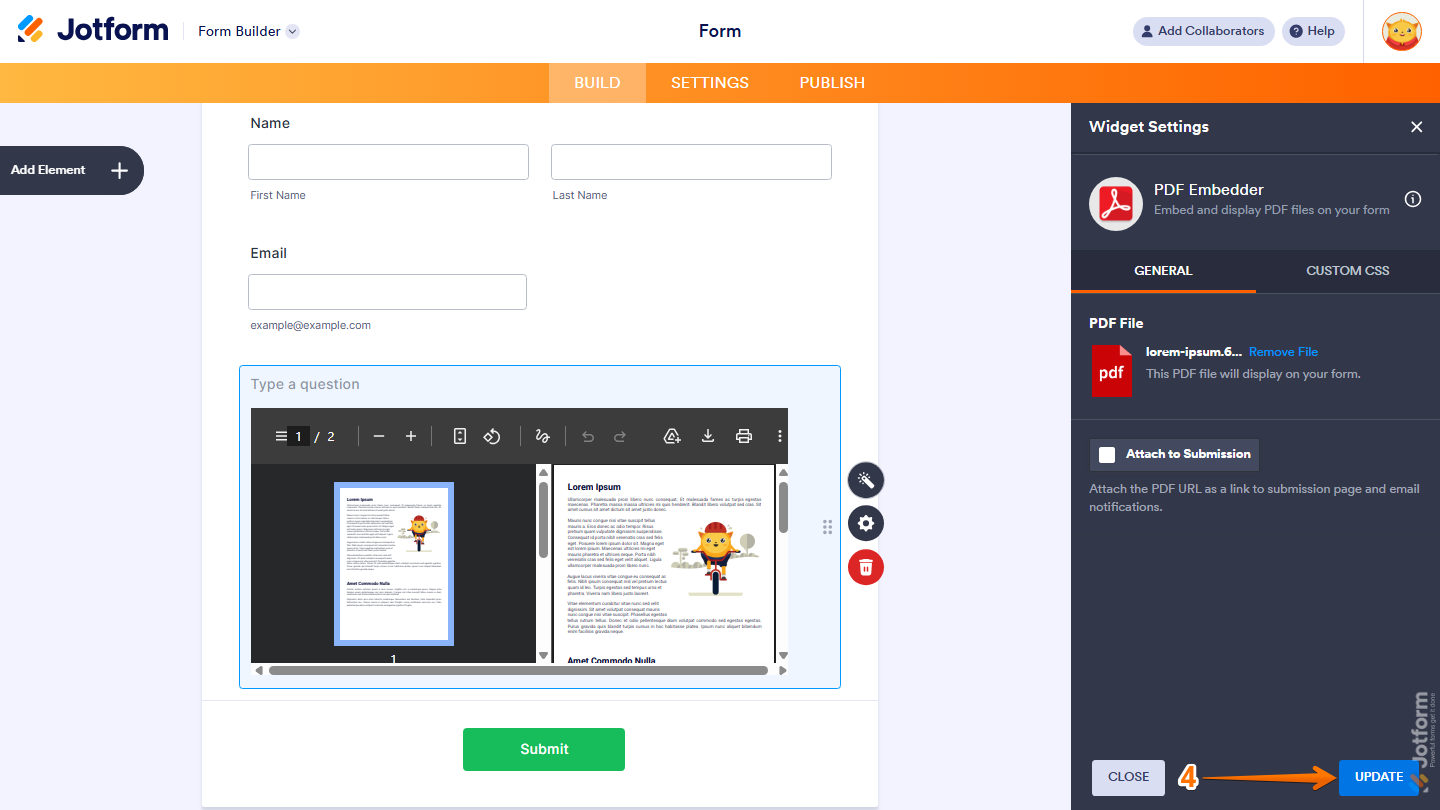

- Assuming the PDF file is in place, click the Update Widget button at the bottom to save the settings.
How to Embed a PDF Document Using Iframe
If you wish to load the PDF file outside, for example, on your server or cloud storage, you could use the iframe method. You only need the secure (HTTPS) link to the PDF file. Here are the steps:

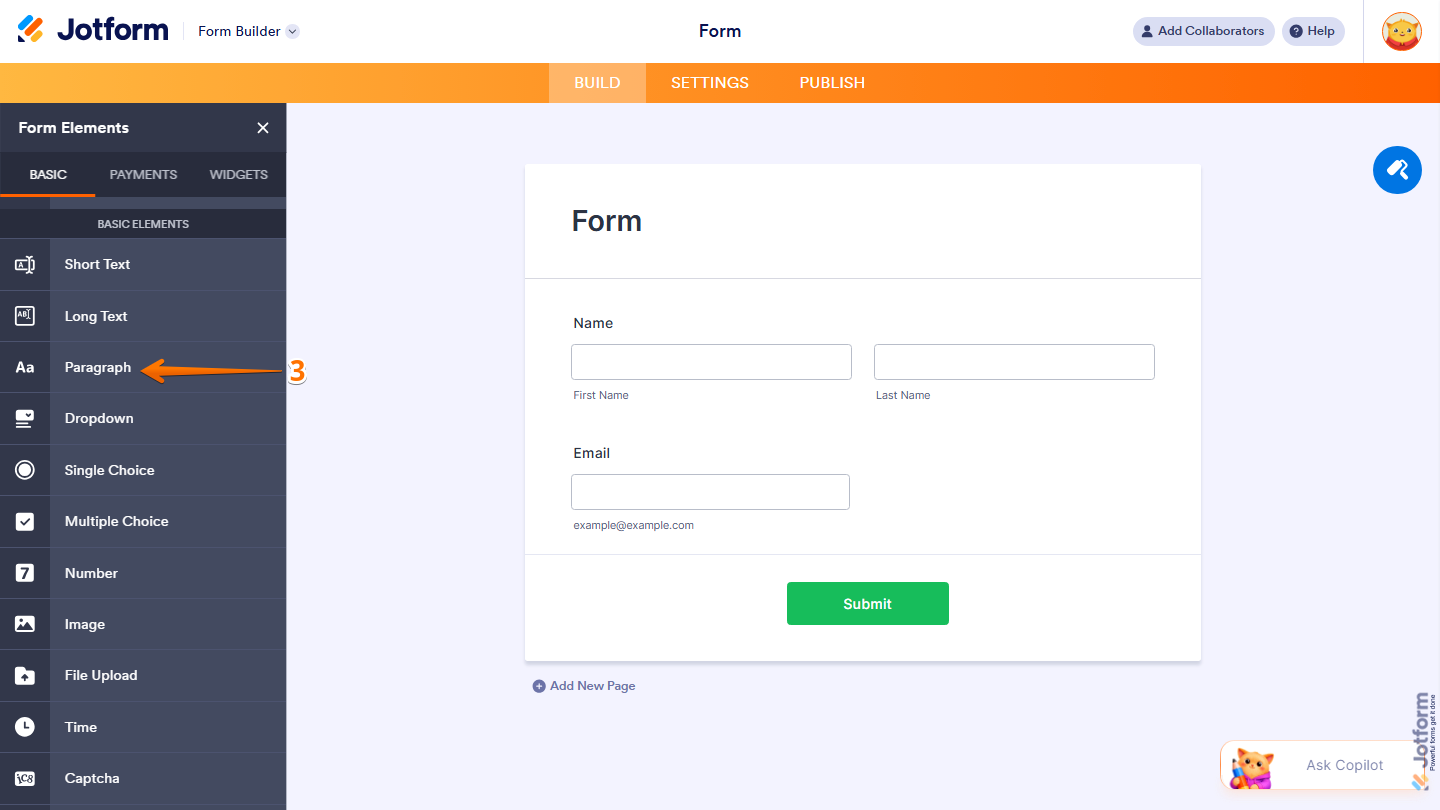

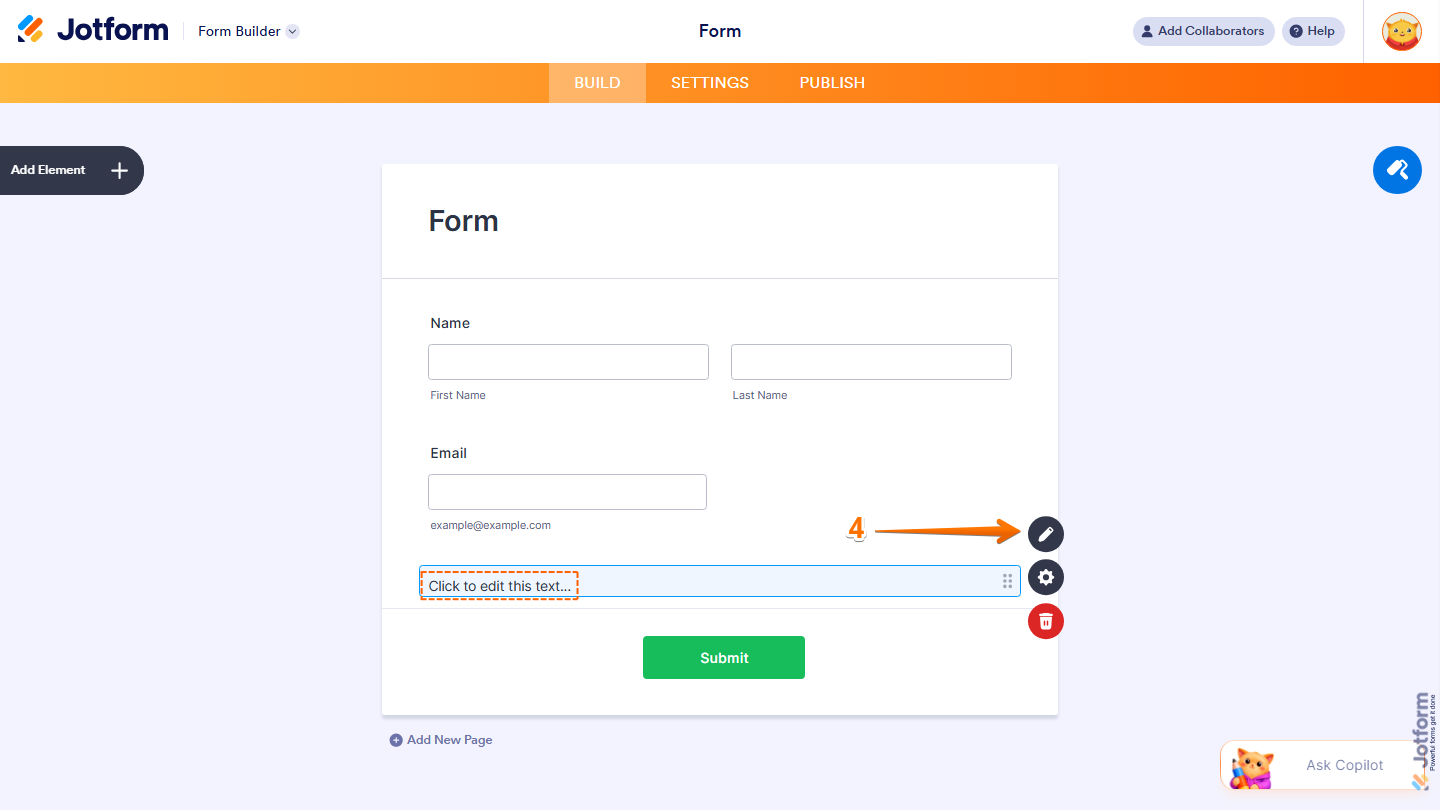

- In the Form Builder, add a Paragraph element to your form.

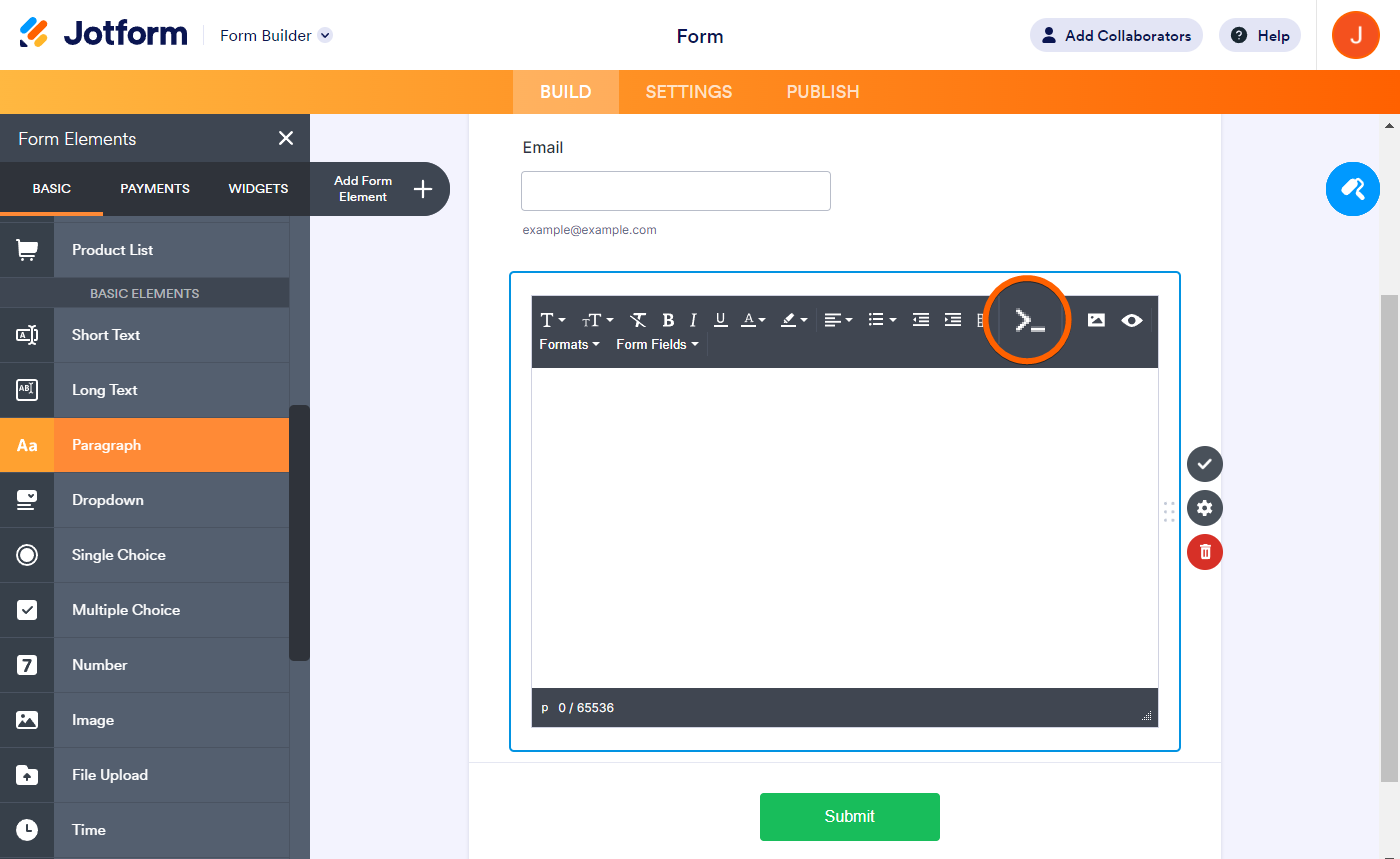

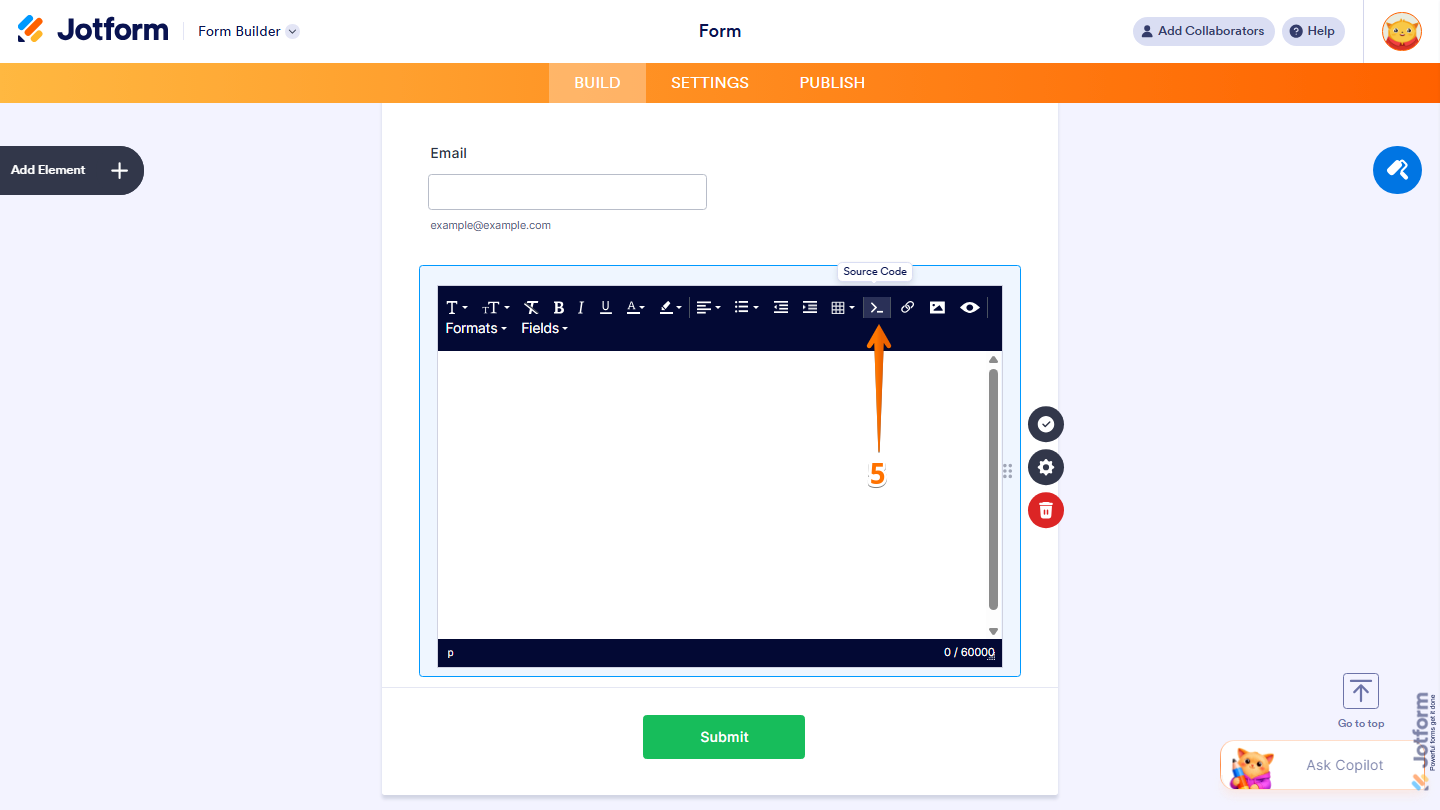

- Click the Source code icon from the toolbar of the Paragraph element.

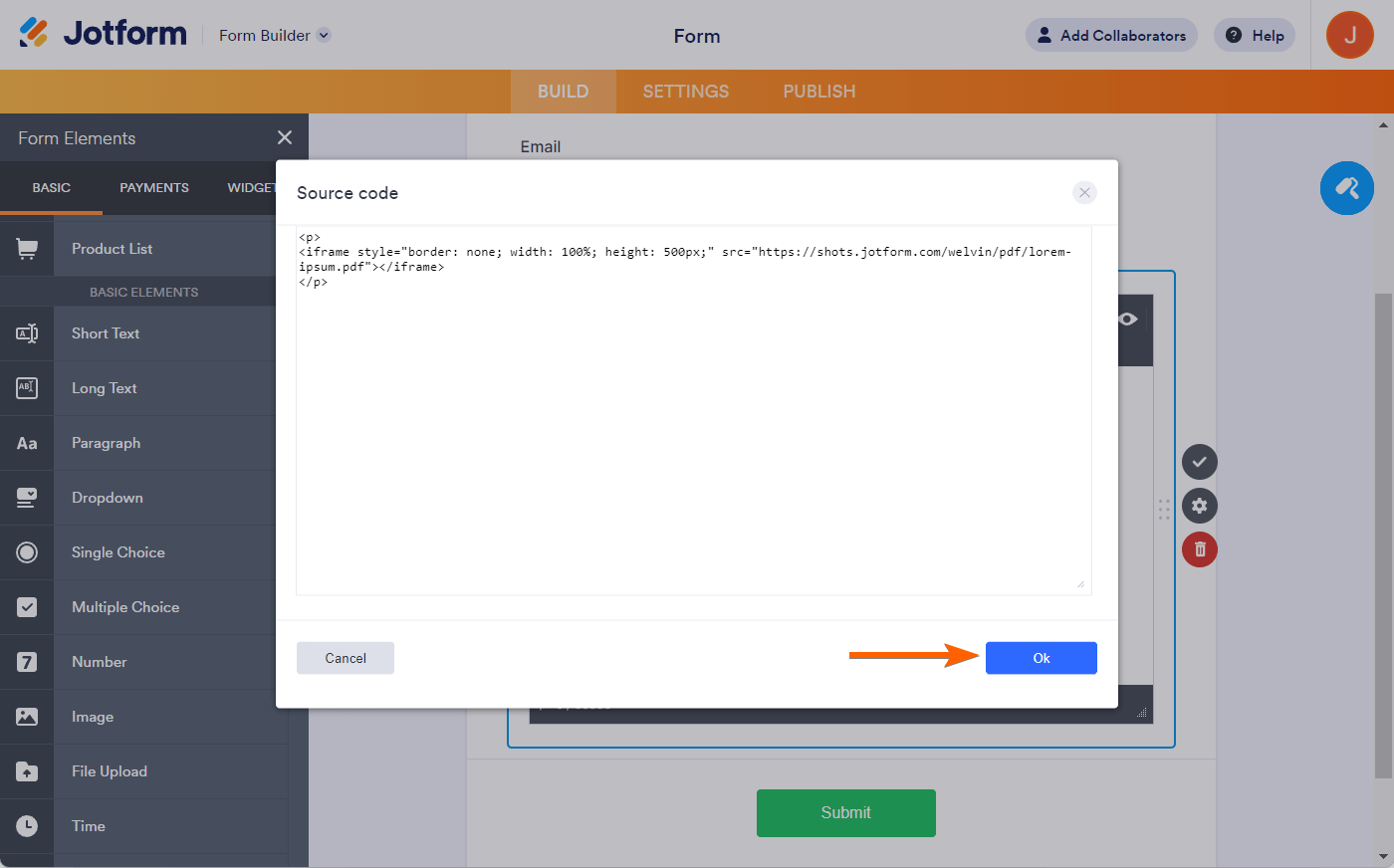

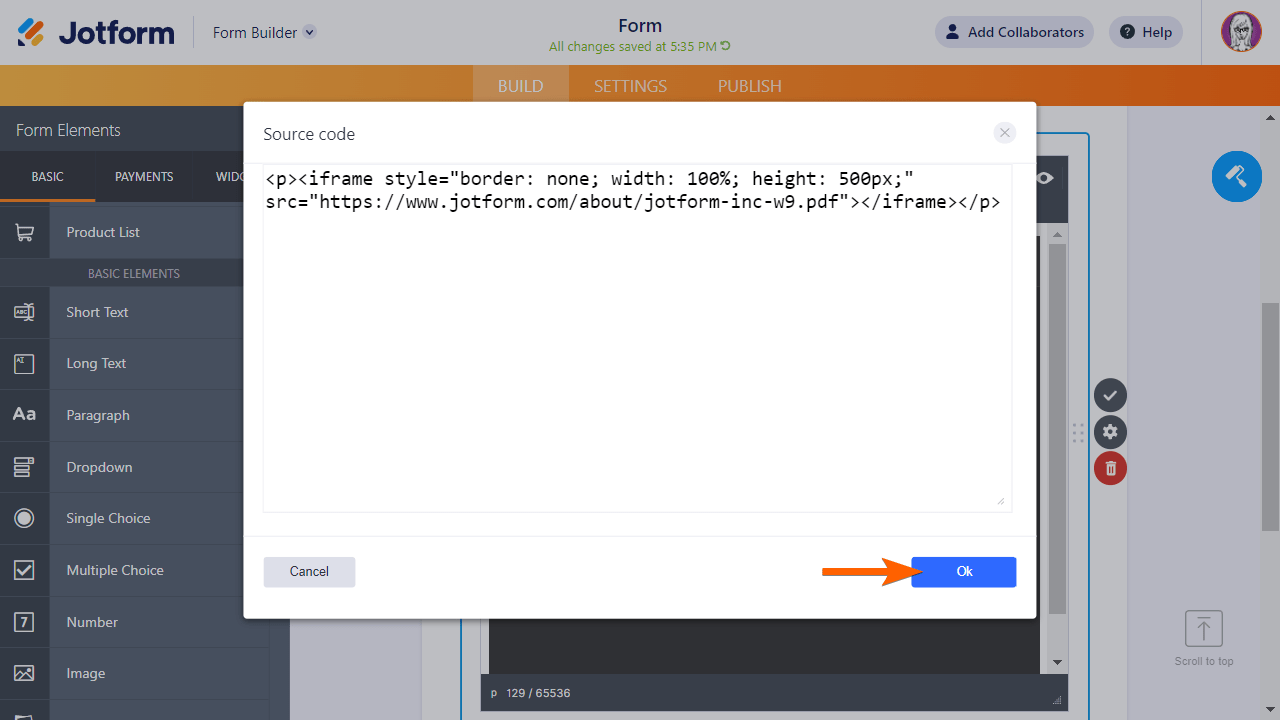

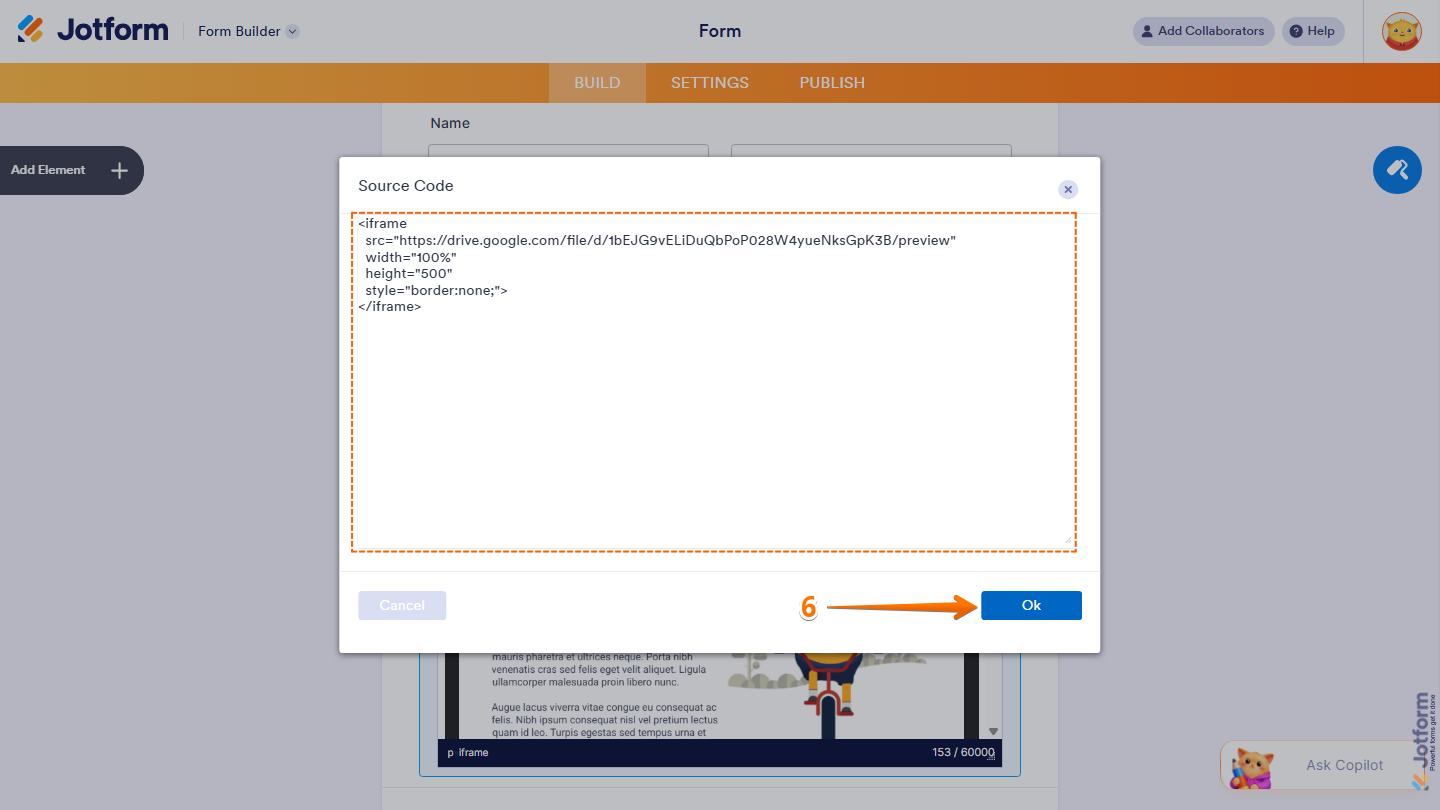

- Paste the following code in the Source code window:
<p>
<iframe style="border: none; width: 100%; height: 500px;"
src="{url}"></iframe>
</p>
- Replace {url} with your PDF document’s link from your server or cloud storage. You can also change the width and height values at your discretion.

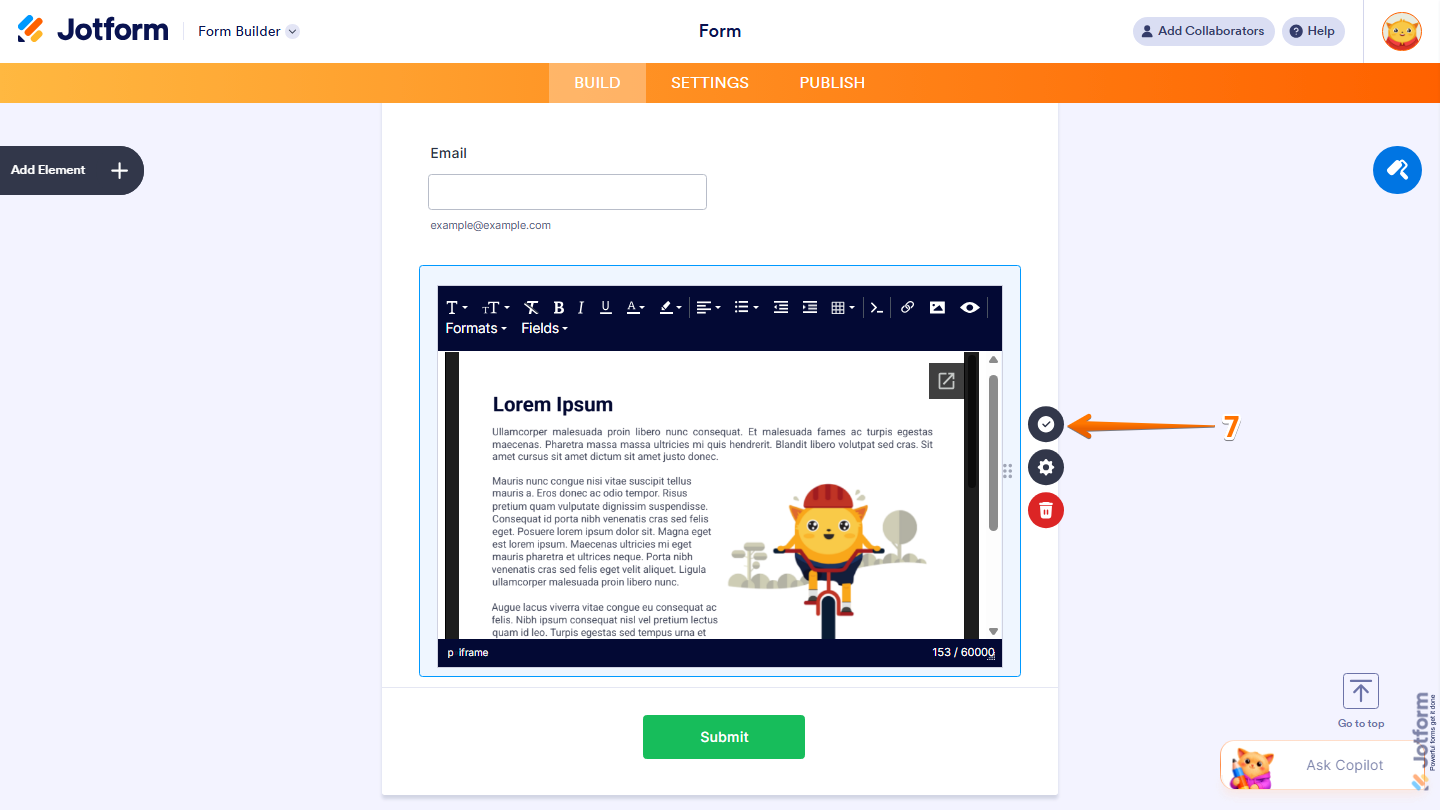

- Click the Ok button to save the changes.
Here’s a demo form showing both methods: https://www.jotform.com/220642685583058
