Form Calculation – Math Function Reference

The Calculation Wizard’s Math Functions allow you to perform mathematical tasks. The following advanced mathematical functions are available on the Form Calculation Widget and when using the Update/Calculate Field condition. You can use this as your reference to build perfect calculation forms.

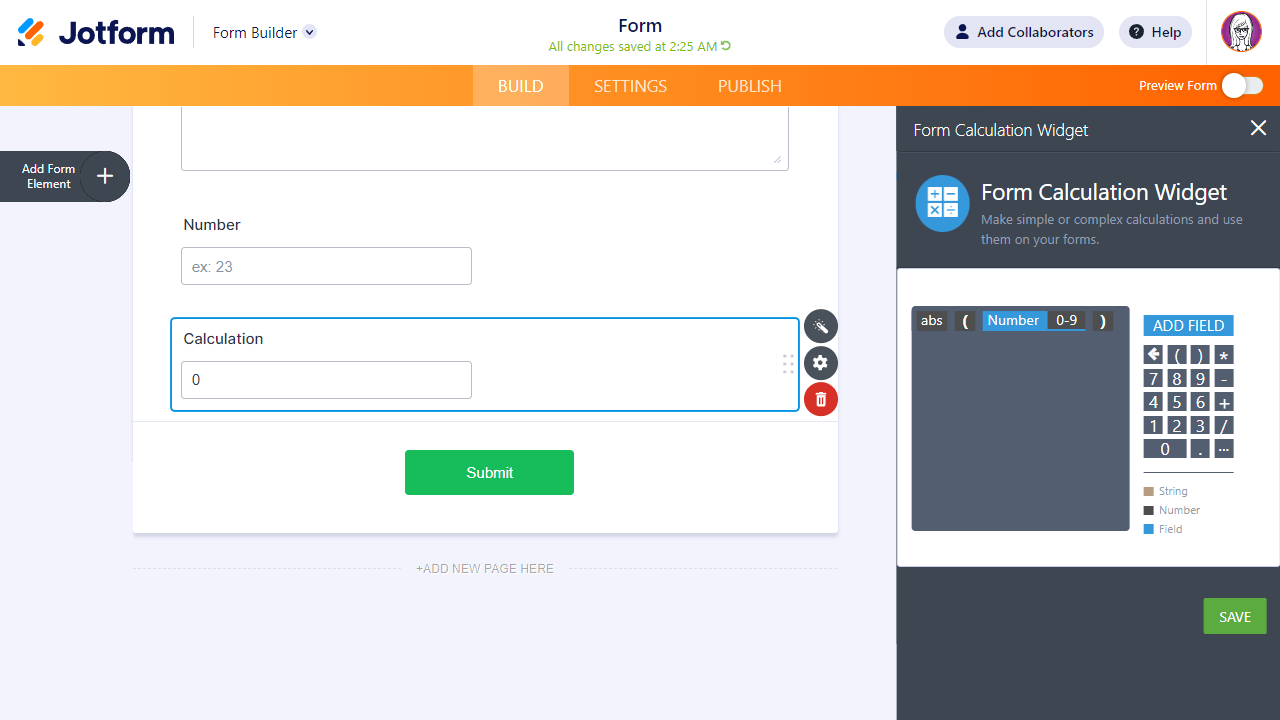

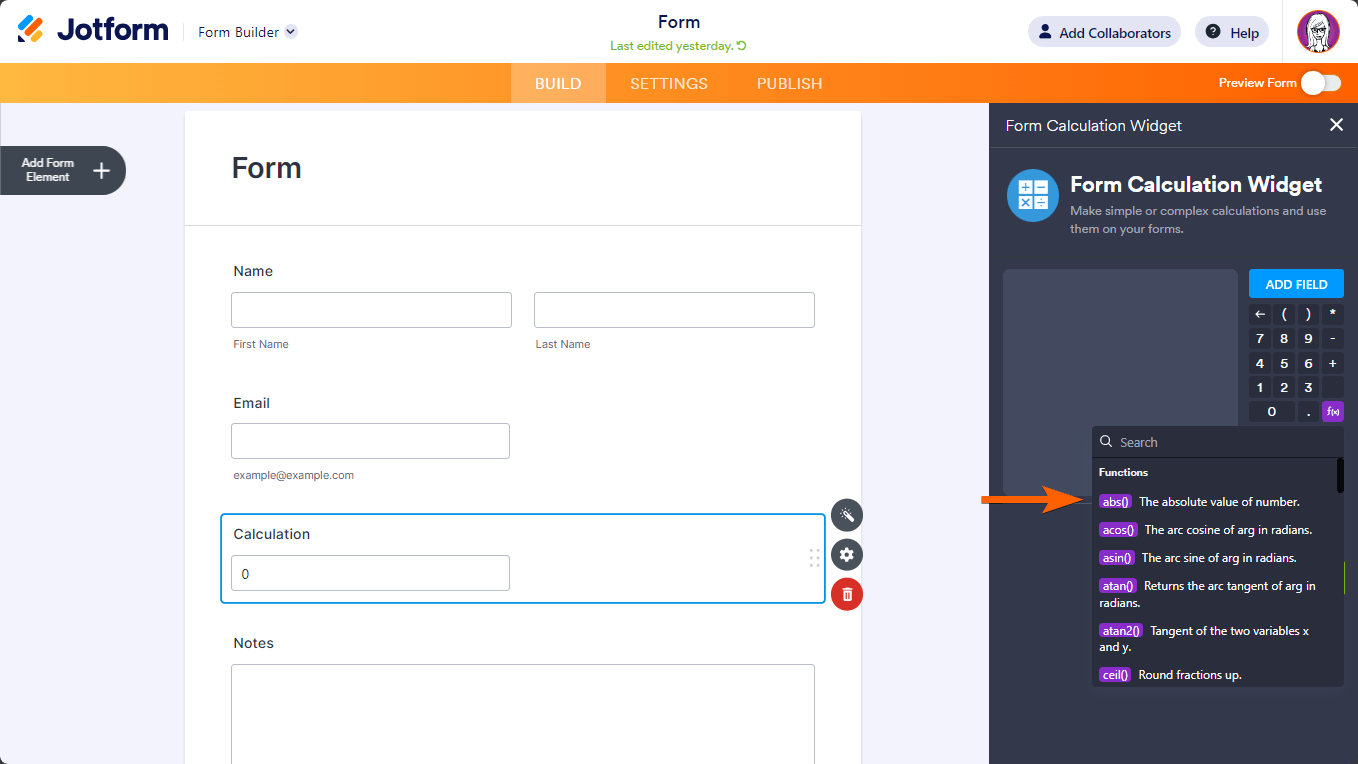

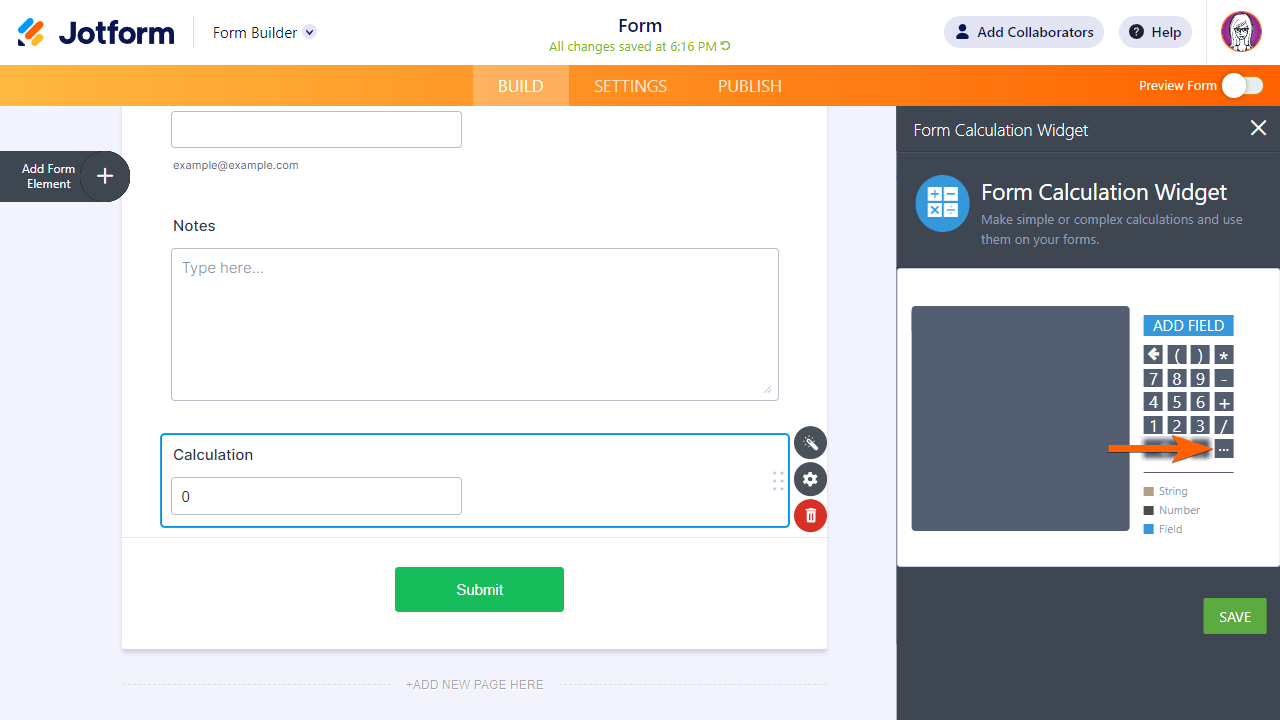

In the Form Calculation Widget:

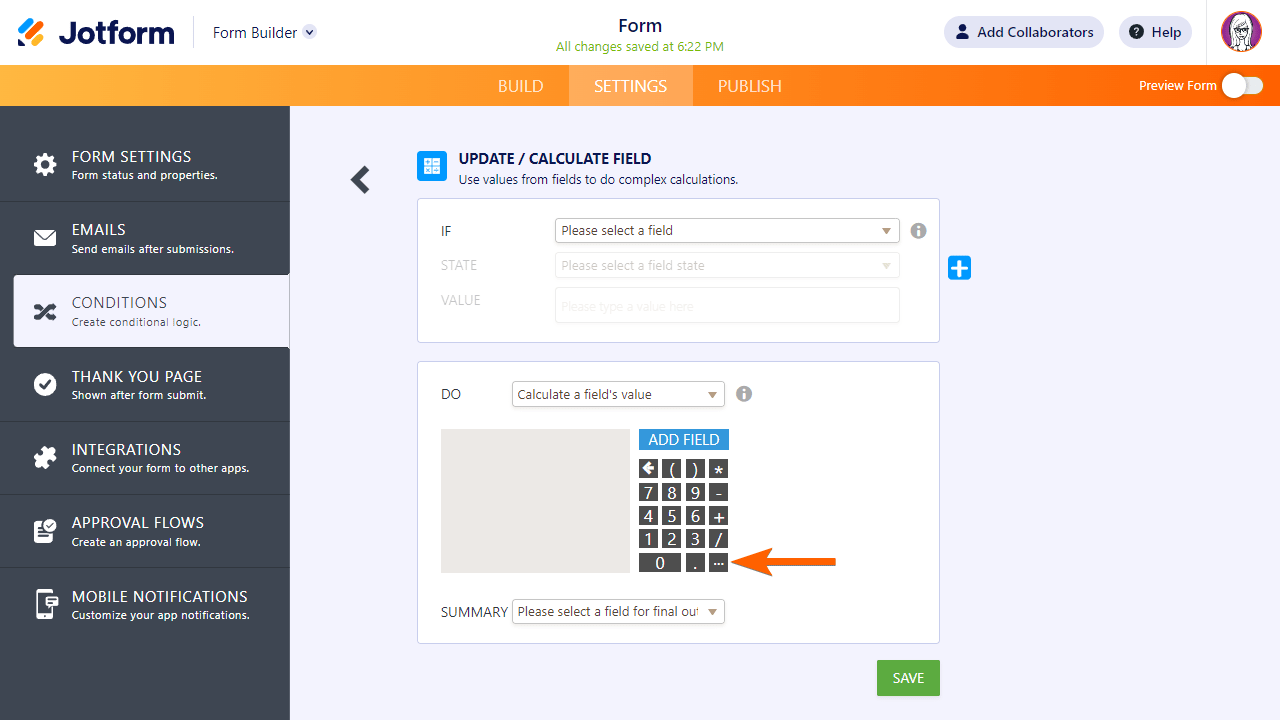

In the Update/Calculate Field Condition:

Math Functions:

• abs()
• acos()
• asin()
• atan()
• atan2()
• ceil()
• cos()
• exp()
• floor()
• log()
• max()
• min()
• pow()
• random()
• round()
• sin()
• sqrt()
• tan()

Math Properties:

• E
• LN2
• LN10
• LOG2E
• LOG10E
• PI
• SQRT1_2
• SQRT2

Other Functions:

• avg()
• avgNoZero()
• count()
• commaSeparate()
• date()
• dateString()
• nth()

Tip: The numbers on the formula below can be replaced with the fields from your form as seen on the actual form when you test it. In other words, the numbers can either be defined on the formula or taken from the user input by adding your form fields.

Math Functions

abs()

This returns the absolute value of a number.

• Example Formula: abs(-100)
• Result: 100
• Form: https://www.jotform.com/form-templates/get-numbers-only-form

acos()

Calculates the arccosine of a number.

• Example Formula: acos(0.5)
• Result: 1.05
• Form: https://www.jotform.com/form-templates/get-arccosine-acos-form

asin()

Calculates the arcsine of a number.

• Example Formula: asin(0.5)
• Result: 0.52
• Form: https://www.jotform.com/form-templates/get-arcsine-asin-form

atan()

Calculates the arctangent of a number.

• Example Formula: atan(1)
• Result: 0.7854
• Form: https://www.jotform.com/form-templates/get-arctangent-atan-form

atan2()

This function calculates the arctangent of the quotient of its arguments.

• Example Formula: atan2(4,8)
• Result: 0.4636
• Form: https://www.jotform.com/form-templates/calculate-arctangent2-atan2-form

ceil()

Round up a number to its nearest integer. If the value is a full number, it will not be rounded.

• Example Formula: ceil(1.5)
• Result: 2
• Form: https://www.jotform.com/form-templates/round-decimals-upward

cos()

This returns the cosine of a number.

• Example Formula: cos(2)
• Result: -0.42
• Form: https://www.jotform.com/form-templates/get-cosine-cos-form

exp()

This function returns the value of Ex, where E is Euler’s number (approximately 2.7183) and x is the specified number.

• Example Formula: exp(1)
• Result: 2.7183
• Form: https://www.jotform.com/form-templates/get-euler-s-number-exp

floor()

This is the opposite of the ceil() function. This rounds down a number to its nearest integer.

• Example Formula: floor(1.5)
• Result: 1
• Form: https://www.jotform.com/form-templates/round-decimals-downward-form

log()

Returns natural logarithm.

• Example Formula: log(2)
• Result: 0.69
• Form: https://www.jotform.com/form-templates/get-logarithm-log-form

max()

Output the number with the highest value.

• Example Formula: max(4,8,2)
• Result: 8
• Form: https://www.jotform.com/form-templates/find-the-highest-value

min()

Output the number with the lowest value.

• Example Formula: min(1,2,5)
• Result: 1
• Form: https://www.jotform.com/form-templates/find-the-lowest-value

pow()

Power returns the value of x to the power of y. Example pow(2,3) means 2*2*2, which returns 8.

• Example Formula: pow(2,3)
• Result: 8
• Form: https://www.jotform.com/form-templates/exponent-power-calculation-form

random

Returns a random number.

• Example Formula: random*100000
• Resut: A random number between 0 and 100000
• Form: https://www.jotform.com/form-templates/generate-random-number-2

round()

Round a number to the nearest integer.

• Example Formula: round(2.5)
• Result: 3
• Form: https://www.jotform.com/form-templates/round-off-number

sin()

Return the sine of a number.

• Example Formula: sin(3)
• Result: 0.14
• Form:https://www.jotform.com/form-templates/get-sine-sin

sqrt()

Output the square root of a number.

• Example Formula: sqrt(25)
• Result: 5
• Form: https://www.jotform.com/form-templates/square-root-calculator-form

tan()

Calculate the tangent.

• Example Formula: tan(45)
• Result: 1.62
• Form:https://www.jotform.com/form-templates/get-tangent-tan

Math Properties

E

Return the Euler’s number.

• Example Formula: E * 2
• Result: 5.4366
• Form:https://www.jotform.com/form-templates/euler-s-e-number-calculator-form

LN2

Outputs the natural logarithm of 2, approximately 0.6931.

• Example Formula: LN2 * 1
• Result: 0.6931
• Form: https://www.jotform.com/form-templates/logarithm2-ln2-sample-form

LN10

Outputs the natural logarithm of 10, approximately 2.3026.

• Example Formula: LN10 * 1
• Result: 2.3026
• Form: https://www.jotform.com/form-templates/logarithm10-ln10-sample-form

LOG2E

Base-2 logarithm of E, approximately 1.4427.

• Example Formula: LOG2E * 1
• Result: 1.4427
• Form:https://www.jotform.com/form-templates/base-2-logarithm-of-e-log2e-calculation-form

LOG10E

Base-10 logarithm of E, approximately 0.4343.

• Example Formula: LOG10E * 1
• Result: 0.4343
• Form: https://www.jotform.com/form-templates/base-10-logarithm-of-e-log10e-calculation-form

PI

Return PI. This represents the ratio of the circumference of a circle to its diameter, approximately 3.14159.

• Example Formula: PI * 1
• Result: 3.1416
• Form:https://www.jotform.com/form-templates/pi-p-calculation-form

SQRT1_2

Return the square root of 1/2 which is approximately 0.7071.

• Example Formula: SQRT1_2 * 1
• Result: 0.7071
• Form: https://www.jotform.com/form-templates/get-the-square-root-of-1-2-with-sqrt1-2

SQRT2

Return the square root of 2, approximately 1.4142.

Example: (√2), which results to 1.414

• Example Formula: SQRT2 * 1
• Result: 1.4142
• Form: https://www.jotform.com/form-templates/multiply-the-number-with-square-root-of-2-sqrt2

Other Functions

avg()

Returns the average value of the list of numeric values.

Function usage: avg(value 1, value 2, value 3)

Here’s an example calculation on my cloned form:

You can find the example avg() function here: https://www.jotform.com/70991655420964.

avgNoZero()

Calculate average value while excluding empty fields.

Function usage: avgNoZero(value 1, value 2, value 3)

Here’s an example calculation:

You can test this function on my cloned form here: https://www.jotform.com/70991655420964. Look for the avgNoZero() heading.

count()

Returns the number of rows that matches a specified criteria. This is usually used if you want to count the number of selections in a check box field.

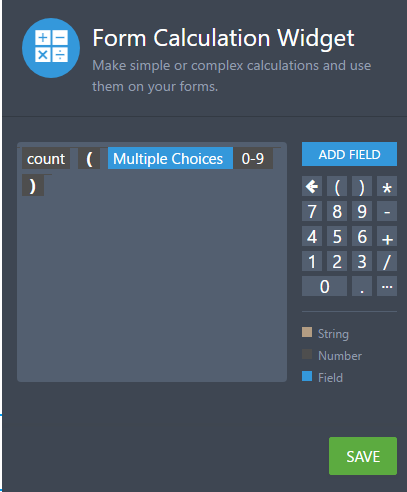

Function usage: count(multiple choice field)

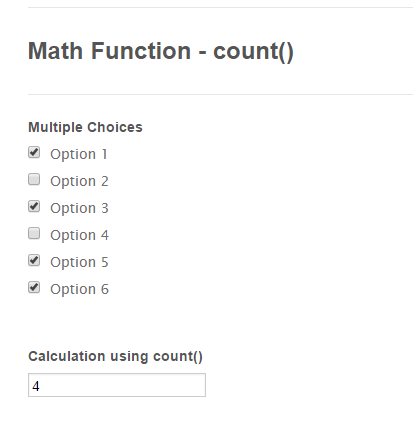

Here’s an example calculation:

You can test this on my cloned form here: https://www.jotform.com/70991655420964. Look for the count() function heading.

commaSeparate()

Include comma separators in large numbers.

Function usage: commaSeparate(number value)

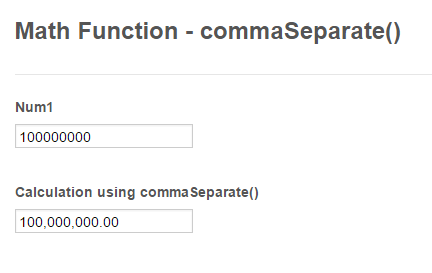

Here’s an example case:

You can test this on my cloned form here: https://www.jotform.com/70991655420964. Look for the commaSeparate() function heading.

date()

Returns the sequential serial number that represents a particular date. You’ll need to use the default date picker field if you will be using date based functions.

Function usage: date(date field value)

Here’s an example case:

You can see this in action on my form here: https://www.jotform.com/70991655420964. Find the math function with header date() on it.

dateString()

Converts the DateTime value to a date string.

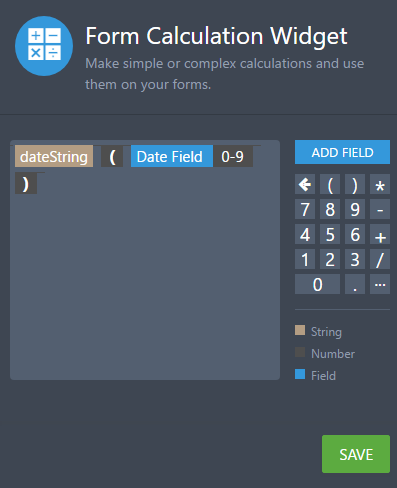

Function usage: dateString(date field value)

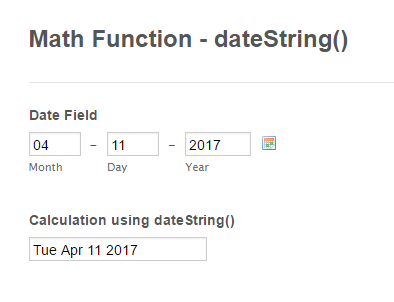

Here’s an example case:

You can see this in action on my cloned form here: https://www.jotform.com/70991655420964. Find the dateString() function heading.

nth()

The function will get the nth biggest field.

Function usage: nth(nth biggest, value 1, value 2, value 3)

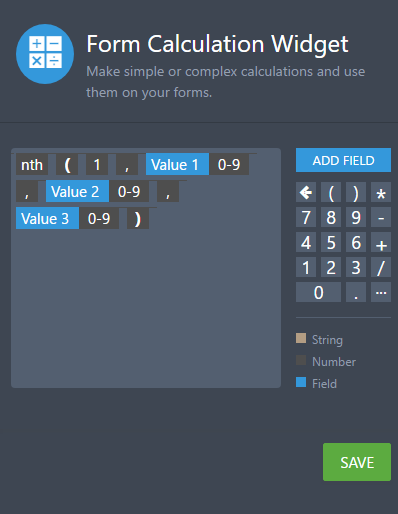

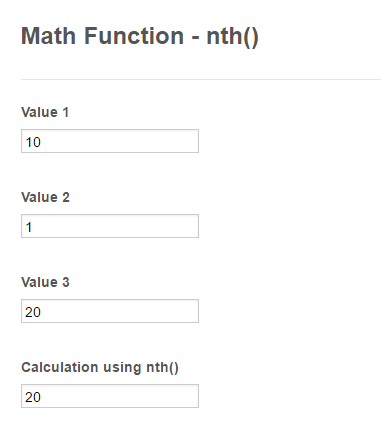

On my settings and example, the first parameter is the nth biggest rule. In my case, I set it to “1”, which means I’ll get the 1st biggest value in the list of inputs I will set. You can see below I have 3 input boxes, the nth() function will get the 1st biggest value. If you want to get the 2nd highest or biggest value, then set the nth rule to 2.

You can test this on my cloned form here: https://www.jotform.com/70991655420964. Look for the nth() function heading.

More math function references – How to turn negative values to zero?

• https://www.w3schools.com/jsref/jsref_obj_math.asp
• https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Global_Objects/Math
